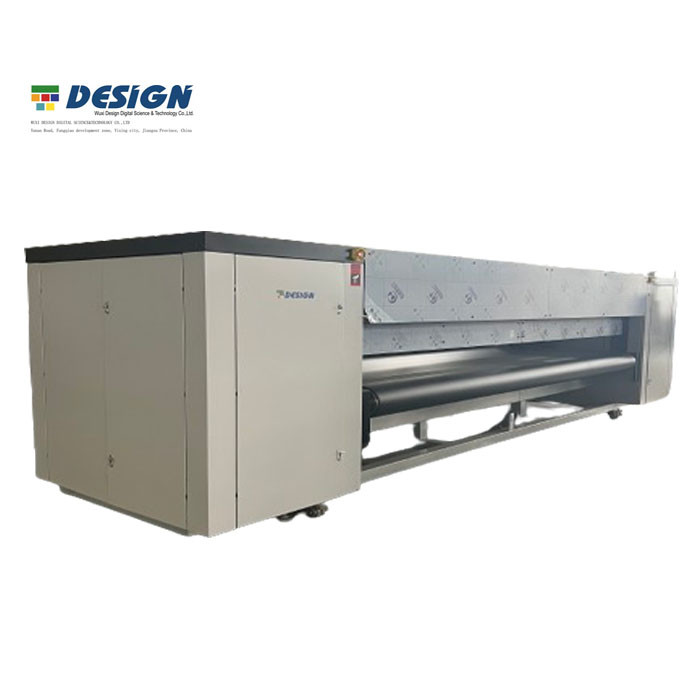

Big 4m Rug Printer Machine CMYK Digital Cotton Fabric Printing Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | DESIGN |
| Certification | CE, PART OF PATENT CERTIFICATE |
| Model Number | DOFORT |
| Minimum Order Quantity | 1 |
| Packaging Details | WOODEN CASE |
| Payment Terms | T/T, |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Print Head | Starfire SG 1024 /Ricoh G5 | Ink Type | Reactive,desperse,acid,pigment |
|---|---|---|---|
| Printing Technology | Inkjet | Dimensions | 40m*6.5m*3m |
| Printing Speed | Up To 280 Square Meters Per Hour | Media Type | Carpet, Rug, Polyester;nylon;textile Etc |
| Color Configuration | CMYK | Drying System | Infrared Drying System |
| Power Supply | AC 220V/110V, 50Hz/60Hz | Printing Resolution | Up To 1440 Dpi |
| Media Thickness | 4mm-20mm | Printing Width | 1.8 Meters,2.8meters,4meters |
| Ink Supply System | Continuous Ink Supply System | Rip Software | Photoprint |
| Interface | USB 2.0 | Screen | LCD Touch Screen |
| Highlight | Big 4m Rug Printer Machine,CMYK Digital Cotton Fabric Printing Machine,4m Rug Printer Machine CMYK |
||
Product Description
Big 4m Width Rug Digital Printing Machine With High Quality
TECHNICAL SPECIFICATION
Main technical parameters:
1.
Application: Print carpet
2.
Width: 4000mm
3.
Mechanical speed: 1-15m/min, frequency control
4.
Transmission mode: Horizontal conveying Teflon (arc form)
5.
Heating source: gas heating directly ( supply gas pressure 20-50KPa )
6.
Oven temp.: 100-200℃ auto temp. control
7.
Total voltage power: ≈ 120KW, (380V, 50Hz)
8.
Overall dimension: ≈40m*6.5m*3m
Process: Start carpet → Adyust position → Wet back carpet → Humidify → Adyust position → Print carpet → rectifying traction unit → Dry carpet → Retract the carpet
Synchronizing: synchronizing in the machine for all parts entry to exit section
