Carpet Direct To Textile Printer 4000mm Digital Printing Machine For Fabric
| Place of Origin | CHINA |
|---|---|
| Brand Name | DESIGN |
| Certification | PART OF PATENT CERTIFICATE |
| Model Number | DOFORT |
| Minimum Order Quantity | 1 |
| Packaging Details | WOODEN CASE |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Print Head | Starfire SG 1024 /Ricoh G5 | Ink Type | Reactive,desperse,acid,pigment |
|---|---|---|---|
| Printing Speed | Up To 280 Square Meters Per Hour | Media Type | Carpet, Rug, Polyester;nylon;textile Etc |
| Color Configuration | CMYK | Drying System | Infrared Drying System |
| Power Supply | AC 220V/110V, 50Hz/60Hz | Printing Resolution | Up To 1440 Dpi |
| Media Thickness | 4mm-20mm | Printing Width | 1.8 Meters,2.8meters,4meters |
| Ink Supply System | Continuous Ink Supply System | Rip Software | Photoprint |
| Interface | USB 2.0 | Screen | LCD Touch Screen |
| Highlight | Carpet Direct To Textile Printer,Direct To Textile Printer 4000mm,4000mm Digital Printing Machine For Fabric |
||
Product Description

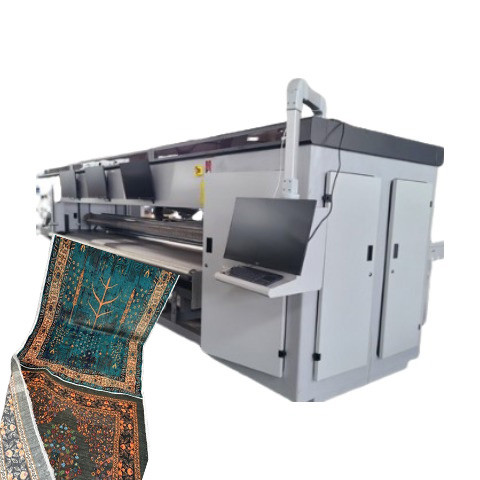

Carpet Digital Printing Machine 4000mm Width Direct Print On Polyester Rugs
Product Description:
Product Name : Digital Textile Printer/Digital Carpet Printer
Main technical parameters:
1.
Application: Print carpet
2.
Width: 4000mm
3.
Mechanical speed: 1-15m/min, frequency control
4.
Transmission mode: Horizontal conveying Teflon (arc form)
5.
Heating source: gas heating directly ( supply gas pressure 20-50KPa )
6.
Oven temp.: 100-200℃ auto temp. control
7.
Total voltage power: ≈ 120KW, (380V, 50Hz)
8.
Overall dimension: ≈40m*6.5m*3m
Process: Start carpet → Adjust position → Wet back carpet → Humidify → Adyust position → Print carpet → rectifying traction unit → Dry carpet → Retract the carpet
Synchronizing: synchronizing in the machine for all parts entry to exit section
Printer Technical Parameters:
| Model NO. | DOFORT |
| Usage | Carpet Printer,Rug Pinter,Blanket Printer |
| Print Head Quantity | 24,36,48 |
| Media Thickness | Up to 20cm (2-20mm Range Is Adjustable) |
| Power Supply | AC 220V, 50/60Hz |
| Media Type | Rugs, Carpets, Blankets |
| Fabric Type | Knitted or Woven Cotton, Linen, Silk, Wool, Cashmere fabrics |
| Ink Color | CMYK |
| Print Head | Starfire SG1024(80PL) |
| Ink Type | Reactive,Dispersed,Acid |
| Printing Width | 2800mm, 3200mm ,Max to 4000mm |
| Rip Software | Neostampa |
| Ink Supply System | Continuous Ink Supply System |
| Printing Method | Digital Printing |
| Printing Interface | USB2.0 |
| Head Cleaning | Auto Head Cleaning & Auto Scraping Device |
| Take up and Drying | Automatic Take-up System, Infrared Dryer |
| After-sales Service | Online and Offline Long Term Service |
| Transport Package | Wood Case Packed |
| Origin | Made in China |
| HS Code | 8443322100 |
Print Samples
After Sales Service
Our Service
(1)Customized Service:
We Can Provide Customized Production and Packing for You!
(2)Print Service:
We Also Provide FREE Printing Samples for You!
(3)Training Service:
We Provide FREE Training for Our Clients! Even can Send Engineer to Oversea Local Customer!
(4)Guarantee Service:
24 hours after-sales service
(5)Solution Service:
The Most Important We Have Digital Printing Solution Ability!
We Have Provided Many Digital Inkjet Printing Solutions for Over 30 Clients Per Year! we sold to printers to Turkey,Iran,Russian,India etc countries.
Customization:
DESIGN Carpet Printer Machine - Customized Service
Product Details:
1. Brand Name: DESIGN
2. Model Number: DESIGN DOFORT
3. Place of Origin: CHINA
4. Certification: CE
5. Minimum Order Quantity: 1SET
6. Packaging Details: WOODEN CASE
7. Delivery Time: 10WORKING DAYS
8. Payment Terms: T/T
9. Supply Ability: 100SETS/MONTH
10. Ink Type: acid,dispersed,reactive
11. Ink Color: CMYK
12. Print Head Quantity: 24,32,48
13. Printing Method: Digital Printing
14. Ink Supply System: Continuous Ink Supply System
Key Features:
- Textile Floor Covering Printer
- Carpet Printer Equipment
- Textile Floor Covering Printer Machine
We DESIGN factory supplies full line of direct printing equipment including dryer machinery,digital printer and washing equipment to achieve customer’s full demonds.
